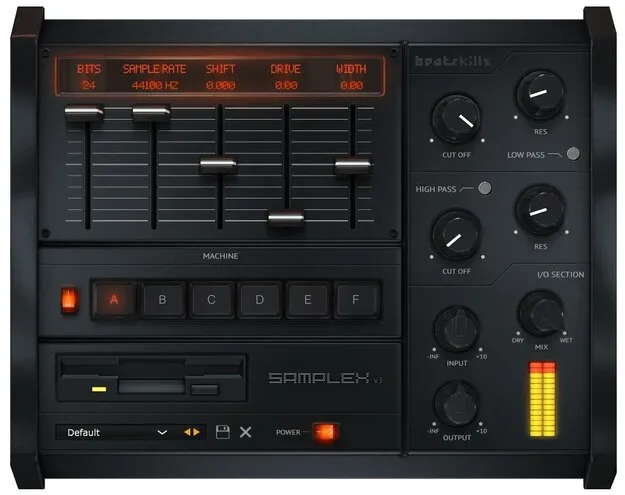

SampleX V3 by BeatSkillz bit crusher and vintage sampler plugin interface

SampleX V3: Vintage Sampler Emulator Plugin by BeatSkillz Free Download

Rated 4.6/5 on Plugin Boutique (683 ratings)

SampleX V3 is a bit crusher effects plugin by BeatSkillz that emulates vintage samplers, letting you control bit depth, sample rate, aliasing, drive and a resonant filter.

VST3AUAAXWindowsmacOS64-bit

AVAILABLE ATPlugin Boutique

Download Now

Free trial available from the developer

01Overview

SampleX V3 is a vintage sampler emulator from BeatSkillz, sold in the Effects category under the Bit Crusher subcategory. The developer says it models six classic samplers and includes a multi convolution system built from sampled hardware. Beyond sampler emulation, it gives you direct control over the digital degradation that gives lo-fi and aliased sounds their character, along with new HP and LP ladder filters and a stereo width control.

Best for

Lo-fi drum processing
Aliased sampler textures
Hip-hop filter sweeps
Bit-reduced vocal effects
Vintage sampler emulation

Developer: BeatSkillz
Category: Bit Crushers
Store: Plugin Boutique

02Key features

What you get

Six vintage sampler models, emulated from sampled hardware
Bit depth control from 24 bits down to 4 bits
Sample rate control from 96 kHz down to 2 kHz
Shift control for adjustable aliasing without changing pitch
Drive section modeled on the S900 sampler saturation
Width control from mono to expanded mid/side stereo
24 dB/oct low-pass filter with self-oscillation at high resonance
Wet/dry mix and separate input and output gain controls

03In depth

Bit Depth, Sample Rate and Aliasing Controls

The core of SampleX V3 is its A/D section. The bit depth control covers a range from 24 bits down to 4 bits, and the sample rate control runs from 96 kHz, matching a typical DAW rate, down to 2 kHz. You can double-click either LCD display to type in an exact value.

The Shift control handles aliasing. Vintage samplers produced their ringing, aliased tones by lowering the pitch of samples, and SampleX V3 reproduces that effect without changing the pitch of the sample itself. The drive section emulates the saturation that came from overloading the preamp before the converter, with the developer citing the S900 sampler as its reference.

The Width control moves the signal from mono through the original stereo field to an expanded mid/side space.

Analog Filter and Mix Options

The filter section models a vintage analog mono synth low-pass filter with a 24 dB/oct slope and resonance. At high resonance the filter reaches self-oscillation and produces a pitched tone, as the original hardware does. The cutoff covers 20 Hz to 20 kHz and resonance runs from 0 to 1.0. The red on/off switch toggles the filter.

Wet and dry controls let you blend the processed and clean signal, and separate input and output gain controls set levels before and after processing. Pop-up value displays appear for the bit/sample rate section and the filter section.

04Specs

Will it run?

Formats, systems and requirements as listed by Plugin Boutique. Missing details are left out, not guessed.

Developer	BeatSkillz
Type	Plugin
Category	Bit Crusher
Formats	VST3, AU, AAX
Operating systems	Windows, macOS
Architecture	64-bit
Free trial	Yes

05FAQ

Questions, answered

What formats and operating systems does SampleX V3 support?

SampleX V3 is available in VST3, AU and AAX formats. It runs on Windows and macOS and is a 64-bit plugin.

What do I need to run SampleX V3?

On macOS, the listed requirement is macOS 10.14 Mojave or later, with 64-bit support only. On Windows, it requires Windows 10 or later (64-bit only). Both platforms list an Intel i5 or AMD Athlon 64 or equivalent processor, 2 GB RAM, 300 MB of disk space and a 1024×768 screen resolution.
