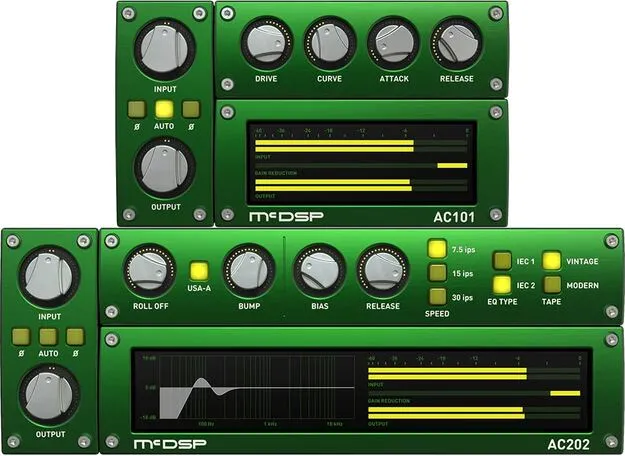

Analog Channel HD v7 by McDSP channel strip plugin interface

Analog Channel HD v7: Analog Channel Strip and Tape Emulation by McDSP Free Download

Analog Channel HD v7 is a channel strip plugin by McDSP that emulates analog channel amplifiers and tape machines. It is offered in VST3, VST2, AU and AAX formats for Windows and macOS.

VST3VST2AUAAXWindowsmacOS64-bit

AVAILABLE ATPlugin Boutique

Download Now

Free trial available from the developer

01Overview

Analog Channel HD v7 bundles two analog-modeling processors: AC101, which models channel amplifier circuits, and AC202, which models analog tape machines. The AC101 works as a digital pre-amp that tolerates heavy gain without digital distortion, with a drive control that sets how far the signal sits into saturation and compression. The AC202 adds tape-style controls such as bias, playback speed and IEC1/2 equalization, along with adjustable low-frequency roll-off and head bump. The plugin is built for producers who want analog warmth and saturation inside a DAW.

Best for

Mix bus warmth
Vocal saturation
Drum bus grit
Tape-style coloring
Channel strip processing

Developer: McDSP
Category: Channel Strips
Store: Plugin Boutique

02Key features

What you get

Two plugins: AC101 channel amp and AC202 tape machine emulation
Drive control sets position in saturation and compression region
Adjustable attack and release times on distortion character
Tape bias, playback speed and IEC1/2 equalization controls
Adjustable low-frequency roll-off and head bump
Selectable playback head types and tape formulations
Real-time display of saturation curves and calibrations
Zero latency algorithms with double precision processing
Phase buttons and mono and stereo versions
Library of presets emulating analog mixing systems

03In depth

Channel Amp and Tape Saturation Character

The AC101 configuration focuses on drive and saturation. A drive control determines where the audio sits in the saturation and compression region, and the attack and release times of the distortion character can be adjusted, so you can shape how the grit responds to your material.

The AC202 configuration emulates tape machines. Beyond standard parameters such as bias, playback speed and IEC1/2 equalization, it offers low-frequency roll-off and head bump that are independent of playback speed. You can choose from several playback head types and tape formulations, and control the tape saturation recovery time.

The real-time display of saturation curves and calibrations helps you see how each setting changes the processing.

Workflow, Latency and Processing

McDSP describes the algorithms as zero latency with ultra-low latency operation, and processing is done in double precision. Phase buttons are included, and both mono and stereo versions are available.

The interface has been updated in high definition, and a library of presets emulates analog mixing systems gives you a starting point before you adjust the controls yourself.

Analog Channel HD v7 is listed as the HD version for AAX DSP users, and a Native version is also available.

04Specs

Will it run?

Formats, systems and requirements as listed by Plugin Boutique. Missing details are left out, not guessed.

Developer	McDSP
Type	Plugin
Category	Channel Strip
Formats	VST3, VST2, AU, AAX
Operating systems	Windows, macOS
Architecture	64-bit
Free trial	Yes

05FAQ

Questions, answered

What is Analog Channel HD v7?

Analog Channel HD v7 is a McDSP plugin with two processors: AC101, which emulates analog channel amplifier circuits, and AC202, which emulates analog tape machines.

Which formats and operating systems does Analog Channel HD v7 support?

It is available in VST3, VST2, AU and AAX formats, for Windows and macOS. It is 64-bit only.

What do I need to run Analog Channel HD v7?

McDSP plugins require an iLok2 or iLok3 USB Smart Key, or a free iLok License Manager account with iLok Cloud for authorization. Each v7 plugin contains two activations per authorization. The plugin is compatible with DAWs that support AAX, AU or VST3, including Pro Tools, Logic Pro, Cubase, Ableton Live and Reaper.
