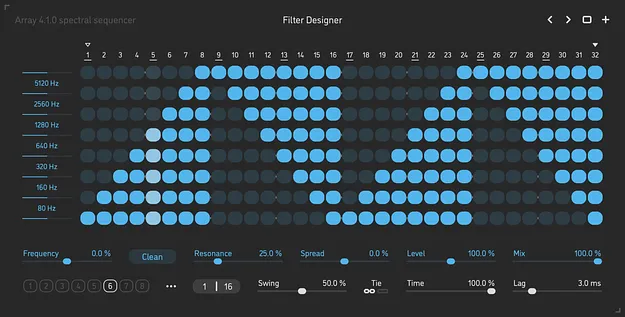

Array v4 by Sinevibes spectral sequencer effect plugin interface

Array v4: Spectral Sequencer Effect Plugin by Sinevibes Free Download

Array v4 is a spectral sequencer effect plugin from Sinevibes that splits audio into 8 frequency bands, one octave apart, and gates each band with a step sequencer.

VST3AUAAXWindowsmacOS64-bit
AVAILABLE ATPlugin Boutique
Free trial available from the developer
01Overview

Array v4 is built around a crossover filter bank that divides incoming audio into eight bands spaced one octave apart. Each band has its own gate, driven by an step sequencer with up to 32 steps per pattern. The crossover filters are described as clean and neutral, so the sequencing is the main source of movement. Optional resonant band-pass filters on each band add more aggressive spectral effects, including vocoder-like morphing. Array v4 is a plugin for rhythmic manipulation of a sound's spectrum.

Best for

  • Rhythmic spectral gating
  • Polyrhythmic effect automation
  • Vocoder-style spectral morphing
  • Stereo spread effects
  • Glitch and stutter processing
Developer
Sinevibes
Category
Sequencers
Store
Plugin Boutique
02Key features

What you get

  • Eight crossover bands spaced one octave apart
  • Optional resonant band-pass filter per band
  • Individual gate sequence per frequency band
  • Eight sequence patterns per preset, up to 32 steps
  • Polymetric and polyrhythmic timing with swing
  • Progressive bipolar pan spread across bands
  • Two-pole lag filters for smooth gate transitions
  • Pattern macro editing: invert, mirror, evolve, randomize
  • Window scaling up to 200%
  • Mono and stereo channel configurations
03In depth

Spectral Gating and Sound Shaping

The crossover filters run at -24 dB/octave and split the signal into eight bands. Sinevibes describes them as neutral, so they do not color the sound on their own. Enabling the optional band-pass filters adds variable resonance and slope on each band, which moves the result from subtle rhythmic gating toward heavy spectral filtering.

A spread control pans the bands progressively across the stereo field, using bipolar pan settings. Lag filters on the gate transitions and on all continuous parameters are meant to keep changes smooth and free of clicks.

Sequencer and Workflow

The sequencer stores eight gate patterns, each with up to 32 steps, and each frequency band has its own sequence. Timing options include swing and polymetric or polyrhythmic motion across different time signatures.

Pattern editing tools include copy, paste, reset, trim, invert, mirror, reverse, evolve, randomize, shift and loop. The interface uses color-coded controls and can be scaled up to 200 percent. Channel configurations cover mono to mono, mono to stereo and stereo to stereo.

04Specs

Will it run?

Formats, systems and requirements as listed by Plugin Boutique. Missing details are left out, not guessed.

DeveloperSinevibes
TypePlugin
CategorySequencer
FormatsVST3, AU, AAX
Operating systemsWindows, macOS
Architecture64-bit
Free trialYes
05FAQ

Questions, answered

What formats and operating systems does Array v4 support?

Array v4 is available in VST3, AU and AAX formats. It runs on Windows and macOS as a 64-bit plugin.

What are the system requirements for Array v4?

On macOS, it needs a 64-bit Mac with an Intel or Apple processor, Metal graphics support and macOS 10.13 or later. On Windows, it needs a 64-bit PC with an x86 processor and Windows 8.1 or later, and runs as AAX or VST3.

Is there a trial version of Array v4?

Yes, a trial version is available.

What does the spread function do in Array v4?

Spread gradually pans the frequency bands across the stereo field, with each band placed progressively further left or right.
