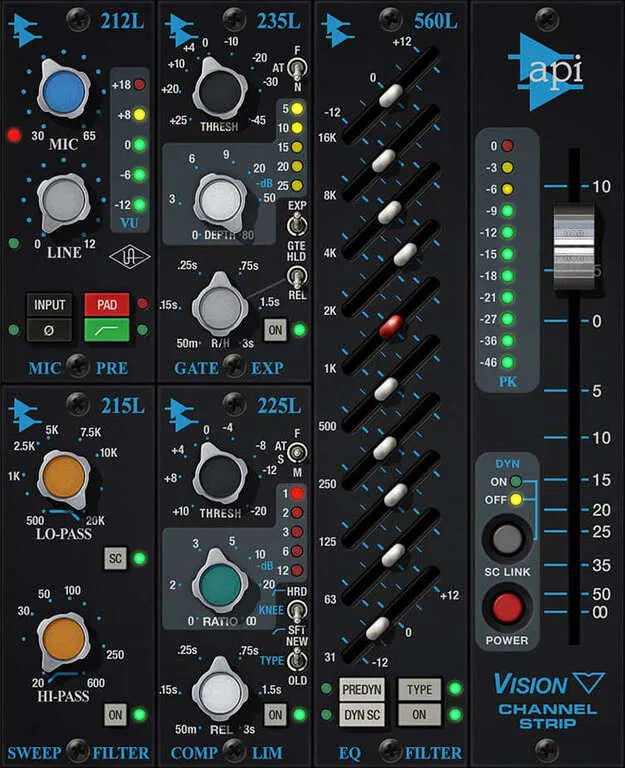

API Vision Channel Strip is a channel strip plugin by Universal Audio that emulates the channel of API's flagship analog console. It combines EQ, preamp, compression, gating and filter modules in one insert.
Universal Audio released the API Vision Channel Strip in 2013 to capture the sound of API's flagship analog console. The developer says API desks have been used on many well-known albums for more than 50 years. The plugin brings the console's preamp, EQ, compressor and gate into a single channel strip. It can be used on individual sources or on a full mix. Version 2 adds switchable EQ modules, a modeled output section and Unison support for Apollo interfaces.
The core of the plugin is an emulation of API's analog console channel. The 212L preamp is modeled with the 2520 op-amp and custom API transformers, which the developer says adds punch to signals.
The EQ section offers a choice between the 550L 4-band parametric EQ and the 560L series 10-band graphic EQ. The 560L emulation models the band interactions and filter amp distortion of the hardware, which is useful for shaping guitars, drums and vocals.
The 225L compressor has selectable "New" and "Old" modes, giving two different compression characters from mild to severe. It works on single tracks as well as complete mixes.
The 235L Gate/Expander is fast enough to shape attack and ambience on sources such as kick drums and bass synths, and it can clamp down on drum rattles and amp noise. The passive 215L Hi and Lo pass filters are fully sweepable for broad tonal shaping.
With an Apollo interface, Unison technology gives bi-directional control between the software and the interface's mic preamps, including the mic/line switch, dedicated cut filter and -6 dB line pad.
Formats, systems and requirements as listed by Plugin Boutique. Missing details are left out, not guessed.
| Developer | Universal Audio |
|---|---|
| Type | Plugin |
| Category | Channel Strip |
| Formats | VST3, AU, AAX |
| Operating systems | Windows, macOS |
| Architecture | 64-bit |
It is available in VST3, AU and AAX formats. It runs on Windows and macOS, in 64-bit versions.
You need a supported DAW compatible with VST3, AU or AAX, an internet connection to download and authorize the plugin, and a free iLok account. Windows 10 or 11 (64-bit) or a supported macOS version is required, along with a free UA Connect application to manage UAD Native plugins. An iLok USB key is optional.
Yes. The UAD Native version runs on a Mac or PC without any UA hardware. Apollo Realtime and UAD-2 versions are also included and run accelerated on Apollo interfaces and UAD-2 hardware.
The plugin includes artist presets from Joe Chiccarelli, Neil Dorfsman, David Isaac and others.
